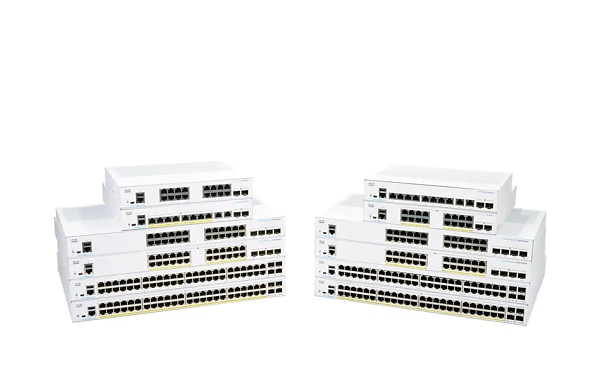

Комутатор Cisco CBS350 Managed 48-port GE, 4x1G SFP

Суич, тип: Fixed Port, Managed
Общ брой портове: 48
Основни портове, тип: RJ-45 10/100/1000 Mbps
Power Over Ethernet (PoE): -
Uplink портове: 4 x 1G SFP
Свободни (10GB) слотове: -
Управление: Web based; Cisco Business Dashboard; on-device UI, CLI, and SNMP
Stackable: -
Fans: 1 fan
Захранване: Internal (100-240V, 50-60 Hz)
Routing: Layer 3 static routing (IPv4/IPv6 static routing); Support for CIDR; Policy-Based Routing
Памет (Flash, RAM): Flash: 256 MB; CPU memory: 512 MB, Packet buffer: 3 MB
Капацитет за маршрутизиране/превключване, Gbps: 104 Gbps
Пропускателна способност, Mpps: 77.38 Mpps
MAC адреси: 16K
VLAN (брой, стандарти): Support for up to 4094 VLANs simultaneously; Port-based and 802.1Q tag-based VLANs; MAC/protocol-based VLAN; IP subnet-based/Management VLAN; Private VLAN; PVE; Guest/unauthenticated VLAN; Dynamic VLAN assignment via RADIUS server; Voice/Multicast TV VLAN
QoS: Priority levels: 8 hardware queues; Scheduling: Strict priority and Weighted Round-Robin (WRR); Class of service: Port based; 802.1p VLAN priority-based; IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based; DiffServ; ACLs, trusted QoS
L2 мрежови стандарти: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at, RFC
L3 мрежови стандарти: BOOTP/DHCP
IPv6 functionality: IPv6 host mode; IPv6 over Ethernet; Dual IPv6/IPv4 stack; IPv6 neighbor and router discovery (ND); IPv6 stateless address autoconfiguration; MTU discovery; DAD; ICMP v6; DHCPv6 stateful client; ISATAP
Сигурност: SSL; IEEE 802.1X port security; ARP; IP Source Guard; DHCP; IPMB; IPv6 First Hop Security; SCT; DoS
Размери (Ш, Д, В), mm: 445 x 273 x 44 mm
Опция за монтаж: Rackmount
Други: USB Type-A slot on the front panel of the switch for easy file and image management; Cisco Standard mini USB Type-B / RJ45 console port
