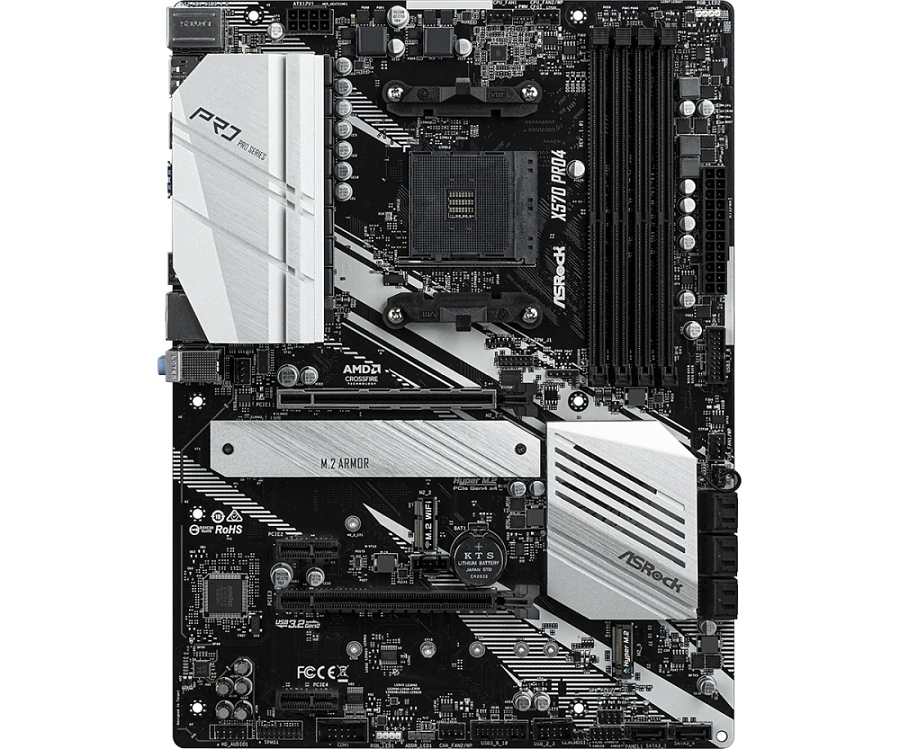

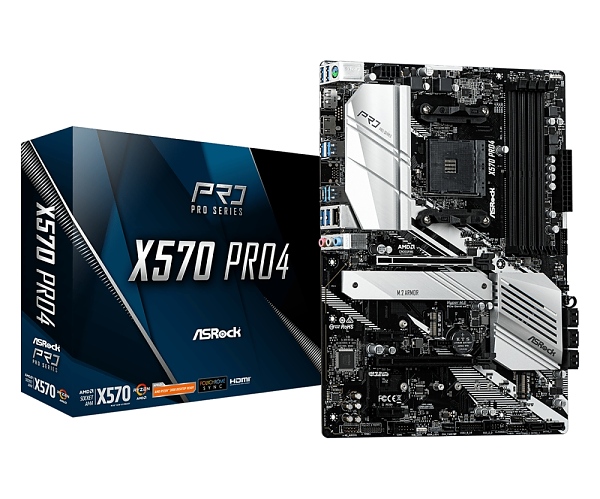

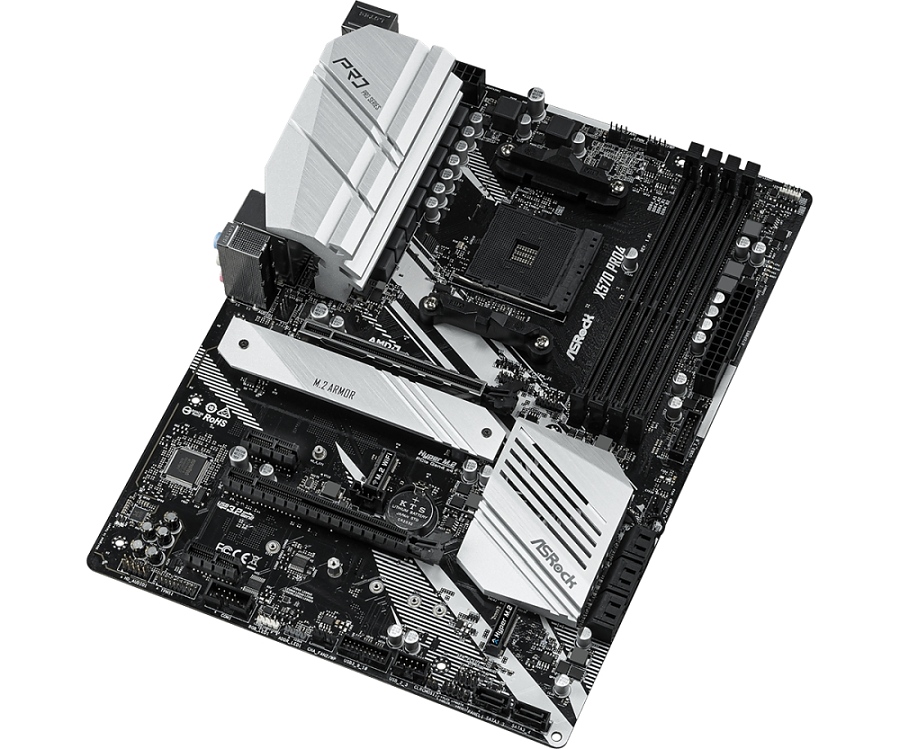

Дънна платка Asrock X570 Pro 4

Серия: PRO4
Процесор: AMD AM4 Socket Ryzen 2000 and 3000 Series processors
Чипсет: AMD X570
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support, ACPI 5.1 compliance wake up events, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, Supports "Plug and Play"
Памет: DDR4
Брой слотове: 4 DIMM Slots, Max. capacity of system memory: 128GB, Dual Channel DDR4 Memory Technology, AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
Аудио: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec), Premium Blu-ray Audio support, Supports Surge Protection, ELNA Audio Caps, PCB Isolate Shielding, Individual PCB Layers for R/L Audio Channel
Безжична мрежа: -
Конектори: 1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 2 x RGB LED Headers, 1 x Addressable LED Header, 1 x CPU Fan Connector (4-pin), 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
Слотове: 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)), 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)), 2 x PCI Express 4.0 x1 Slots
M.2 слот: 1x Hyper M.2 Socket (M2_1), M Key type 2230/2242/2260/2280/22110 M.2 PCIe module up to Gen4x4 (64 Gb/s); 1x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)

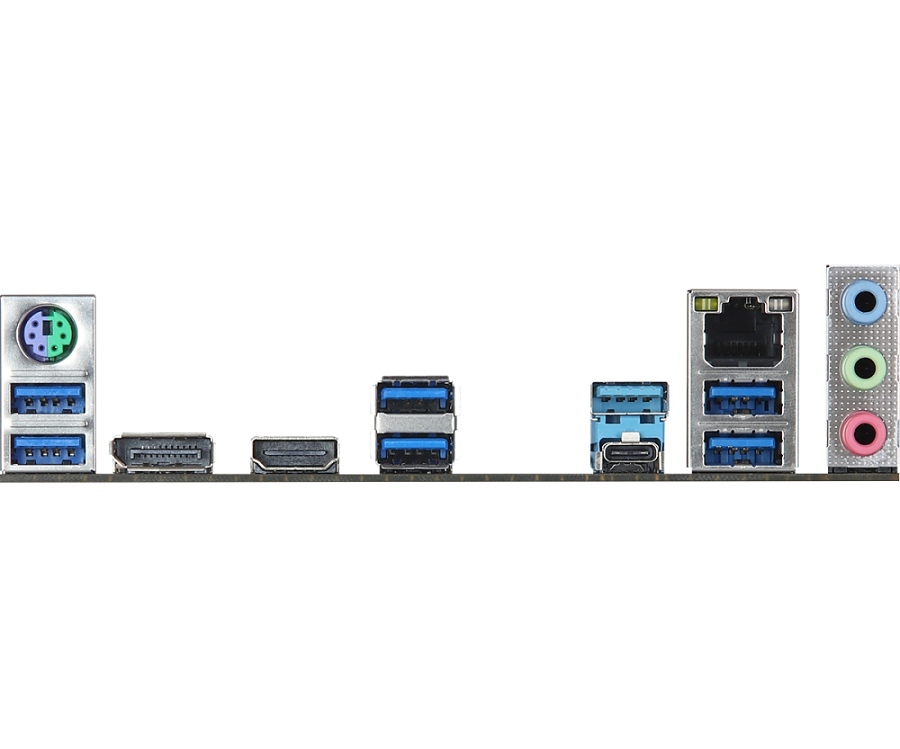

Интерфейс: 3x Antenna Ports (on I/O Panel Shield); 1x PS/2 Mouse/Keyboard Port; 1x HDMI Port; 1x DisplayPort 1.2; 1x USB 3.2 Gen2 Type-A Port(10Gb/s); 1xUSB 3.2 Gen2 Type-C Port(10Gb/s); 6x USB 3.2 Gen1 Ports; 1x RJ-45 LAN Port with LED; HD Audio Jacks: Line in/Mic
Софтуер: ASRock A-Tuning; ASRock Polychrome SYNC; ASRock XFast LAN
Операционна система: Microsoft Windows 10 64-bit
Форм-фактор: ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm; Solid Capacitor design; 2oz Copper PCB
Специални функции: ASRock USB 3.2 Gen2, ASRock Super Alloy, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock POST Status Checker, ASRock Full Spike Protection, ASRock Live Update & APP Shop
