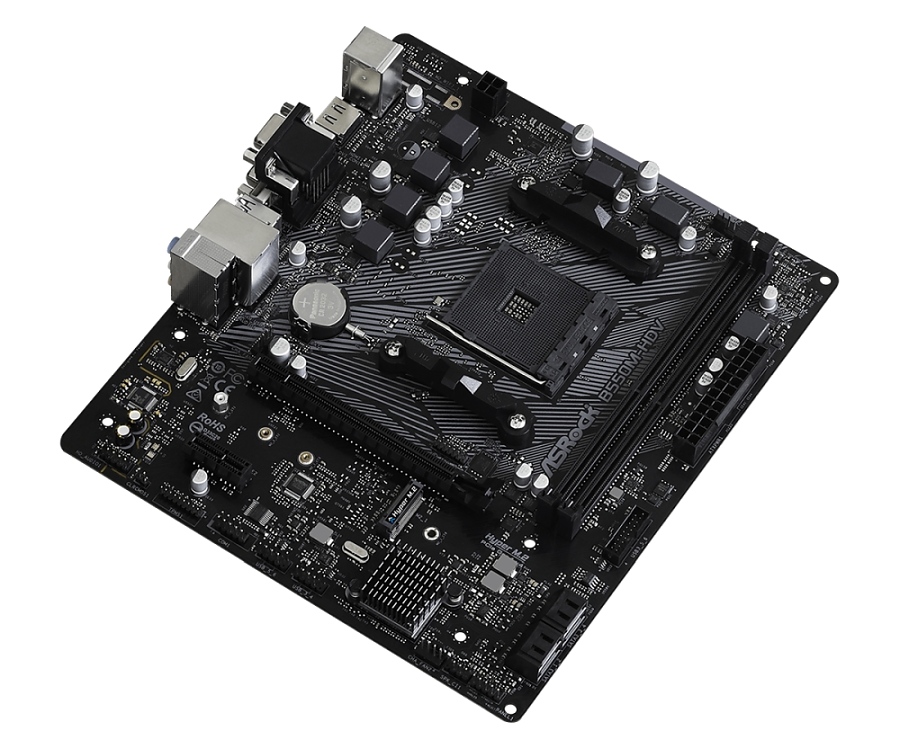

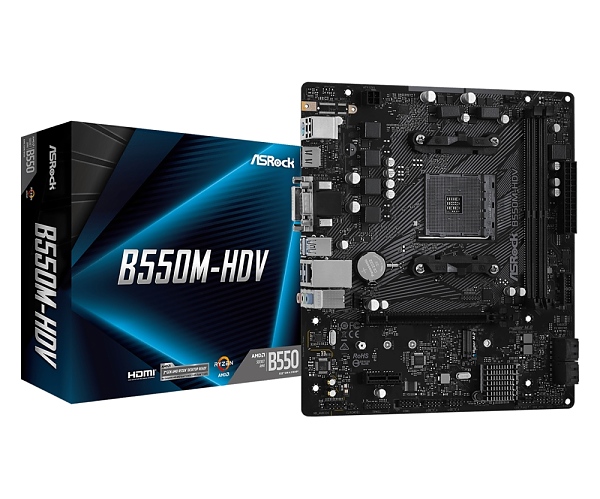

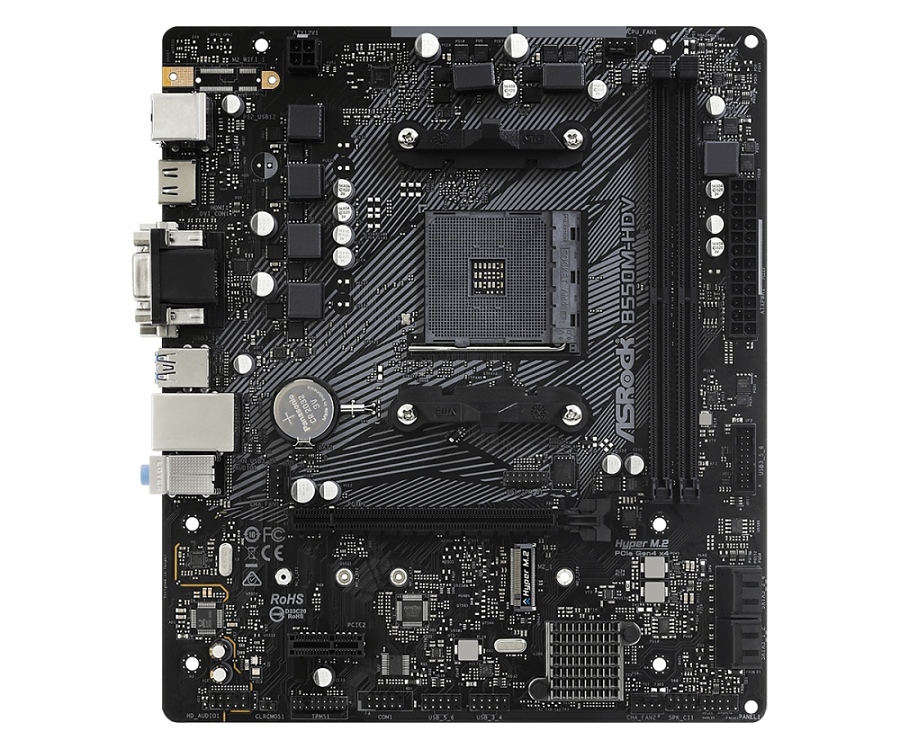

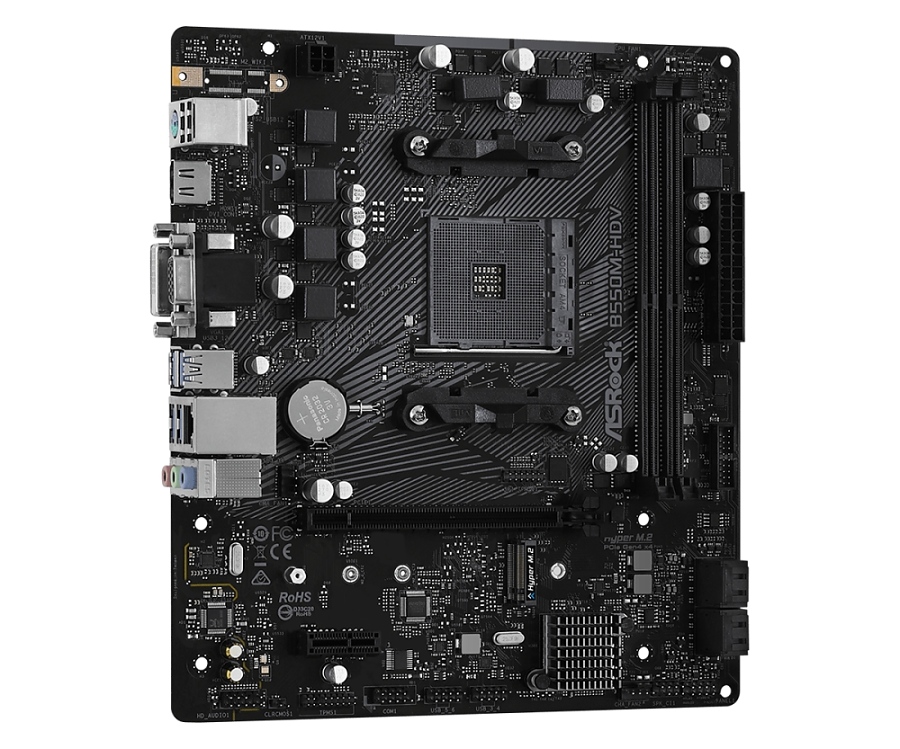

Дънна платка Asrock B550M-HDV

Серия: HDV
Процесор: Gen AMD AM4 Ryzen
Чипсет: AMD B550
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment.
Памет: DDR4
Брой слотове: 2 DIMM Slots; Max. capacity of system memory: 64GB; Dual Channel DDR4 Memory Technology.
Аудио: 7.1 CH HD Audio (Realtek ALC887 Audio Codec); Supports Surge Protection.
Безжична мрежа: -
Конектори: 1 x SPI TPM Header, 1 x COM Port Header, 1 x Chassis Intrusion and Speaker Header, 1 x 24 pin ATX Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header.
Слотове: 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode), 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode), 1 x PCI Express 3.0 x1 Slot.
M.2 слот: 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, 1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4

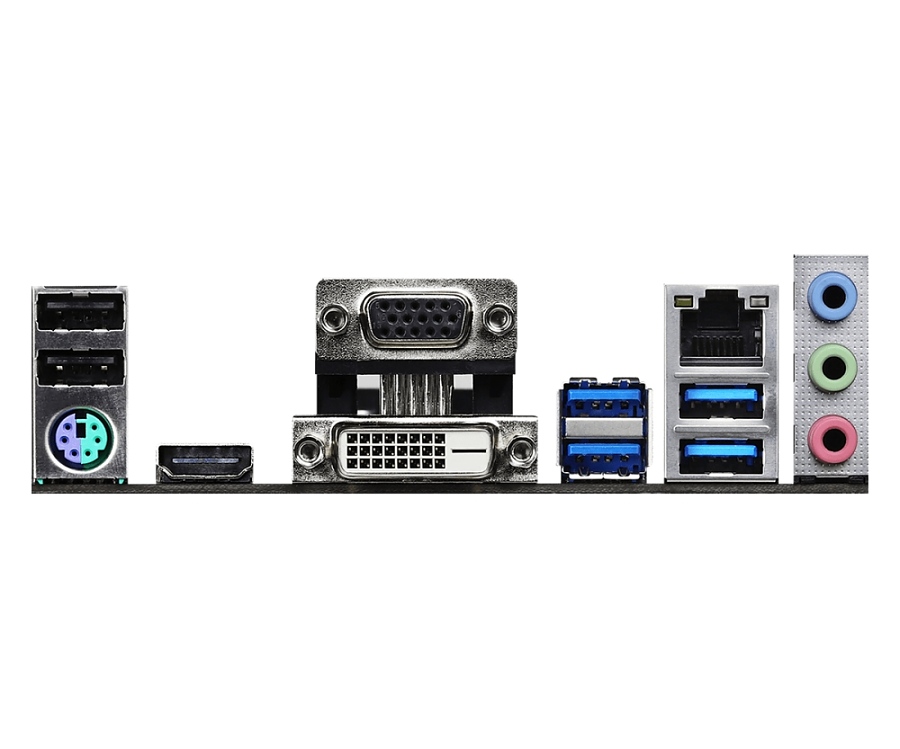

Интерфейс: 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port, 2 x USB 2.0 Ports, 4 x USB 3.2 Gen1 Ports, 1 x RJ-45 LAN Port with LED, HD Audio Jacks: Line in / Front Speaker / Microphone.
Софтуер: ASRock Motherboard Utility (A-Tuning); ASRock XFast LAN
Операционна система: Microsoft Windows 10 64-bit
Форм-фактор: Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
Специални функции: ASRock Super Alloy, ASRock Hyper M.2 (PCIe Gen4x4), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop.
